article: 4711581492509

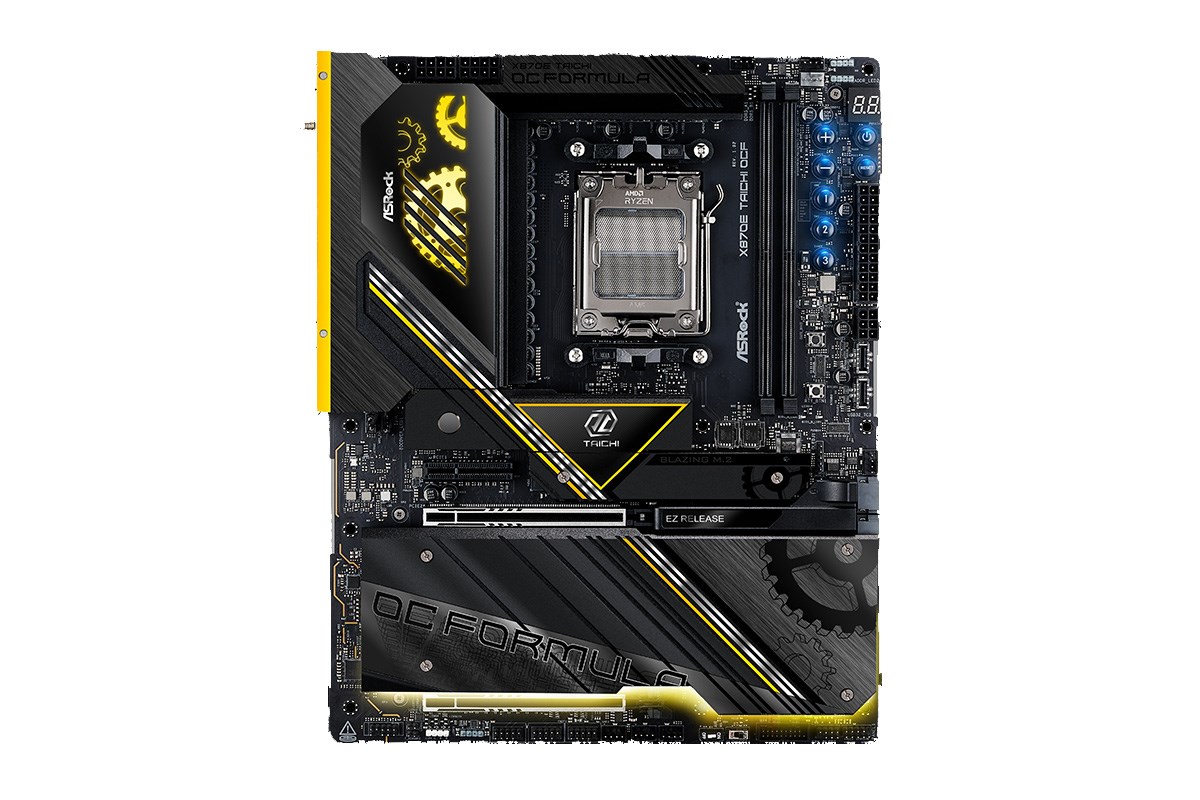

Asrock X870E TAICHI OCF motherboard

Characteristics

All characteristics
Features | Certification
- FCC, CE- ErP/EuP ready
Network | Wi-Fi
Yes
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Memory | ECC сompatibility
ECC & Non-ECC
BIOS | Clear CMOS button
Yes
Characteristics
Features | Certification
- FCC, CE- ErP/EuP ready
Network | Wi-Fi
Yes
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Memory | ECC сompatibility
ECC & Non-ECC
BIOS | Clear CMOS button
Yes
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
7
Rear panel I/O ports | USB4 Gen 3x2 ports quantity
2
Network | Ethernet interface type
Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
Expansion slots | PCI Express x16 (Gen 5.x) slots
2
Memory | Memory channels
Dual-channel
Graphics | HDCP version
2.3
Memory | Number of memory slots
2
Network | Wi-Fi standards
802.11g, 802.11a, 802.11b, Wi-Fi 4 (802.11n), 802.11 axe, Wi-Fi 6E (802.11ax), Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be)
Memory | Memory slots type
DIMM
Weight & dimensions | Depth
267 mm
Network | Bluetooth version
5.4
Processor | Compatible processor series
AMD Ryzen 7000 Series, AMD Ryzen 9000 Series, AMD Ryzen 8000 Series
Weight & dimensions | Width
305 mm
Network | Antenna type
2x2
Internal I/O | USB 2.0 connectors
2
Internal I/O | RGB LED pin header
Yes
Network | Ethernet LAN
Yes
Processor | Processor manufacturer
AMD
Graphics | HDCP
Yes
Storage controllers | RAID support
Yes
Features | Motherboard chipset family
AMD
Internal I/O | Number of CPU fan connectors
2
Memory | Supported memory types
DDR5-SDRAM
Internal I/O | 12V power connector
Yes
Rear panel I/O ports | HDMI ports quantity
1
Features | Motherboard chipset
AMD X870E
Internal I/O | USB 3.2 Gen 2x2 connectors
2
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Memory | Maximum internal memory
128 GB
Packaging content | Antenna included
Yes
Network | LAN controller
Realtek RTL8126
Features | Audio chip
Realtek ALC4082
Network | Bluetooth
Yes
Internal I/O | Number of SATA III connectors
2
Rear panel I/O ports | S/PDIF out port
Yes
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Internal I/O | Front panel audio connector
Yes
Features | Audio output channels
5.1 channels
Expansion slots | PCI Express x4 (Gen 4.x) slots
1
Memory | Unbuffered memory
Yes
Internal I/O | Number of chassis fan connectors
4
Storage controllers | RAID levels
10, 1
Features | Windows operating systems supported
Windows 10 x64, Windows 11 x64
Internal I/O | EPS power connector (8-pin)
Yes
BIOS | BIOS type
UEFI AMI
Rear panel I/O ports | USB 2.0 ports quantity
2
Internal I/O | CPU fan connector
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
