article: 4710483947513

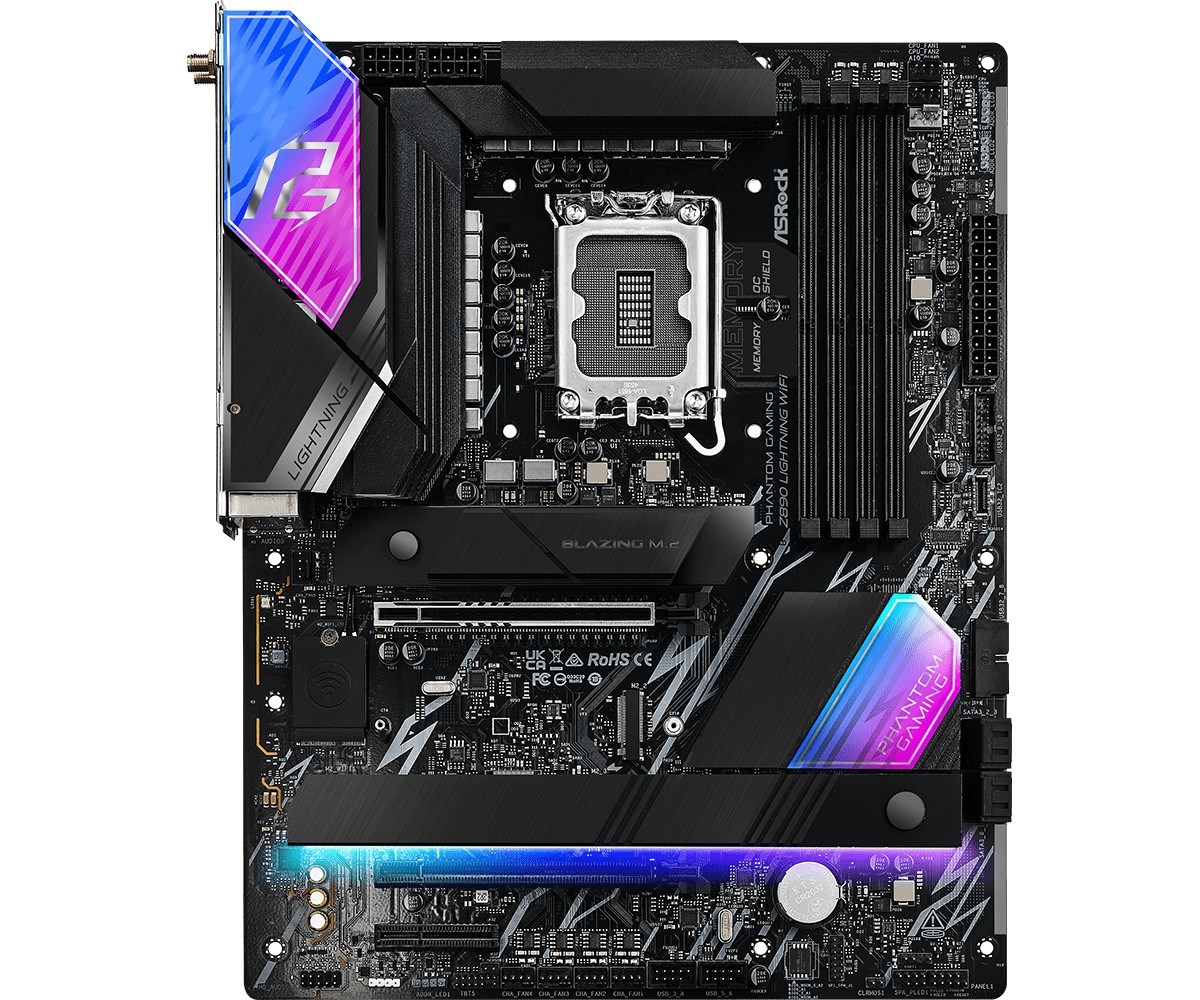

ASRock Z890 Z890 Lightning WiFi Motherboard

Characteristics

All characteristics
Features | Audio output channels
7.1 channels
Storage controllers | RAID levels
10, 5, 1
Storage controllers | Supported storage drive types
HDD & SSD
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Storage controllers | RAID support
Yes
Characteristics
Features | Audio output channels
7.1 channels
Storage controllers | RAID levels
10, 5, 1
Storage controllers | Supported storage drive types
HDD & SSD
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Storage controllers | RAID support
Yes
Network | Ethernet interface type
2.5 Gigabit Ethernet
Features | Motherboard chipset
Intel Z890
Internal I/O | Thunderbolt headers
1
Memory | Unbuffered memory
Yes
Expansion slots | PCI Express x1 (Gen 3.x) slots
1
Internal I/O | CPU fan connector
2
Expansion slots | Number of M.2 (M) slots
1
Features | Windows operating systems supported
Windows 10 x64, Windows 11 x64
Processor | Processor socket
LGA1851
Memory | Intel Extreme Memory Profile (XMP) version
3.0
Memory | Number of memory slots
4
Memory | Maximum internal memory
256 GB
Network | LAN controller
Killer E3100G
Internal I/O | Pump connector
1
Rear panel I/O ports | Headphone outputs
1
Weight & dimensions | Width
305 mm
Internal I/O | Number of SATA III connectors
4
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
Expansion slots | PCI Express x16 (Gen 4.x) slots
1
Internal I/O | USB 2.0 connectors
2
Internal I/O | RGB LED pin header
Yes
Processor | Processor manufacturer
Intel
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Features | Motherboard chipset family
Intel
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Internal I/O | Front panel audio connector
Yes
Memory | Memory slots type
DIMM
Network | Wi-Fi standards
IEEE 802.11b, IEEE 802.11n, 802.11 axe, IEEE 802.11ax, IEEE 802.11a, IEEE 802.11be, IEEE 802.11ac, IEEE 802.11g
Certificates | Certificates
FCC, ErP/EuP ready, CE
Weight & dimensions | Depth
244 mm
Network | Ethernet LAN
Yes
Packaging content | Antennas quantity
2
Storage controllers | Supported storage drive interfaces
M.2, SATA III
Rear panel I/O ports | HDMI ports quantity
1
Processor | Maximum number of SMP processors
1
Internal I/O | TPM connector
Yes
BIOS | BIOS type
UEFI AMI
Features | Audio chip
Realtek ALC1220
Rear panel I/O ports | USB 2.0 Type-A ports quantity
2
Memory | Memory channels
Dual-channel
Rear panel I/O ports | Microphone in
Yes
Internal I/O | ATX Power connector (24-pin)
Yes
Network | Wi-Fi
Yes
Features | Motherboard form factor
ATX
Memory | Supported memory types
DDR5-SDRAM
Network | Wi-Fi frequency
2,4 Ghz / 5 GHz / 6 GHz
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Processor | Compatible processor series
Intel Core Ultra (Series 2)
Packaging content | Motherboard
Yes
Network | Wireless statistics
Yes
Internal I/O | Chassis fan connector (4-pin)
4
Packaging content | Cables included
Thermistor Cable x 1, SATA III 2 pcs., ARGB Splitter Cable x 1
Internal I/O | Number of USB 3.2 Gen 2x2 (3.1 Gen 2x2) Type-C ports
1
Rear panel I/O ports | SPDIF optical output
Y
Rear panel I/O ports | Number of Thunderbolt 4 USB-C ports
2
Memory | ECC сompatibility
Non-ECC
Internal I/O | AIO pump fan connector
1
Rear panel I/O ports | Number of antenna connectors
2
Expansion slots | PCI Express x16 (Gen 5.x) slots
1
Internal I/O | 8-pin power connector 12 V
2
Packaging content | Wi-Fi antenna
Yes
