kód produktu: 4710483947445-sk

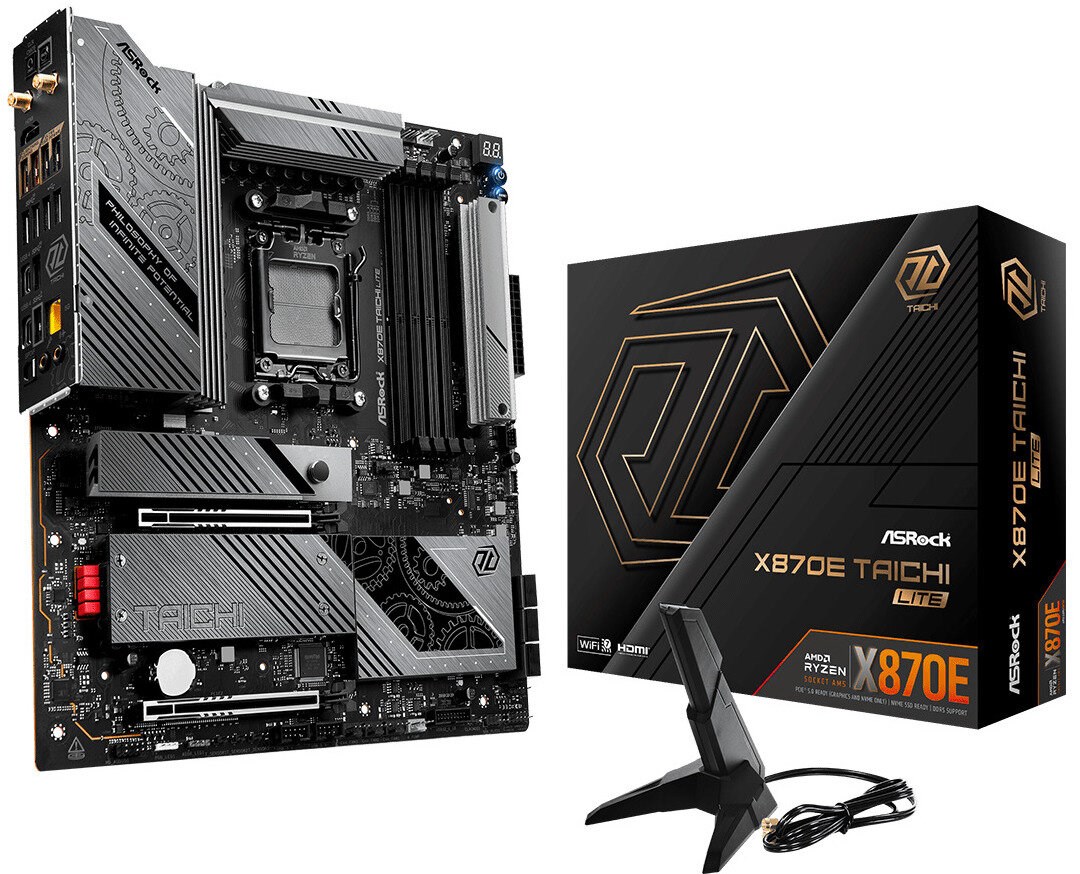

Motherboard – ASRock X870E Taichi Lite

Charakteristika

Všetky parametre
Processor | Processor manufacturer
AMD
Rear panel I/O ports | Number of USB 2.0 Type-A ports
2
Processor | Compatible processor series
AMD Ryzen™ 9000 Series, AMD Ryzen™ 7000 Series, AMD Ryzen™ 8000 Series
Features | Operating system architecture
64-bit
Internal I/O | RGB LED pin header
Yes
Charakteristika
Processor | Processor manufacturer
AMD
Rear panel I/O ports | Number of USB 2.0 Type-A ports
2
Processor | Compatible processor series
AMD Ryzen™ 9000 Series, AMD Ryzen™ 7000 Series, AMD Ryzen™ 8000 Series
Features | Operating system architecture
64-bit
Internal I/O | RGB LED pin header
Yes
Weight & dimensions | Width
305 mm
Weight & dimensions | Depth
267 mm
Internal I/O | USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Network | Wi-Fi standards
802.11b, Wi-Fi 6E (802.11ax), 802.11g, Wi-Fi 5 (802.11ac), Wi-Fi 7 (802.11be), 802.11a, Wi-Fi 4 (802.11n)
Processor | Maximum number of SMP processors
1
Network | Bluetooth version
5.4
Rear panel I/O ports | Number of Wi-Fi antenna ports
2
Memory | Memory channels
Dual-channel
Memory | Number of memory slots
4
Expansion slots | PCI Express x16 (Gen 5.x) slots
2
Network | Ethernet interface type
5 Gigabit Ethernet
Processor | Processor socket
Socket AM5
Network | Ethernet LAN
Yes
Rear panel I/O ports | Microphone in
Yes
Rear panel I/O ports | USB 3.2 Gen 2x2 Type-C ports quantity
2
Network | Wi-Fi
Yes
Memory | Memory slots type
DIMM
Rear panel I/O ports | Line-out
Yes
Memory | Supported memory clock speed (max)
8200+ MHz
Memory | Supported memory types
DDR5-SDRAM
Features | Audio output channels
5.1 channels
Internal I/O | Front panel audio connector
Yes
Features | Motherboard form factor
Extended ATX
Memory | Maximum internal memory
256 GB
Rear panel I/O ports | S/PDIF out port
Yes
Features | Motherboard chipset family
AMD
Internal I/O | Number of SATA III connectors
4
Features | Audio chip
Realtek ALC4082
Network | LAN controller
Realtek RTL8126
Rear panel I/O ports | Ethernet LAN (RJ-45) ports
1
Internal I/O | USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Network | Bluetooth
Yes
Storage controllers | Supported storage drive interfaces
Blazing M.2 (PCIe Gen5 x4), Hyper M.2 (PCIe Gen4 x4)
Features | Motherboard chipset
AMD X870E
Internal I/O | ATX Power connector (24-pin)
Yes
Internal I/O | USB 2.0 connectors
2
Rear panel I/O ports | Clear CMOS button
Yes
Memory | Unbuffered memory
Yes
Rear panel I/O ports | HDMI ports quantity
1
Network | Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Rear panel I/O ports | USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
Internal I/O | CPU fan connector
Yes
Rear panel I/O ports | USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
5
Features | Windows operating systems supported
Windows 11 x64, Windows 10 x64
BIOS | BIOS type
UEFI AMI
